Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

In this blog we are going to cover how to connect CSV files in Helical Insight 5.1 via apache drill It will also support flat files like excel ,json , parquet files etc ( process will be same as CSV)

Follow below steps :

1. Download, install and start Apache Drill. To learn how to install Drill please follow below blog
https://www.helicalinsight.com/drill-installation-helical-insight/

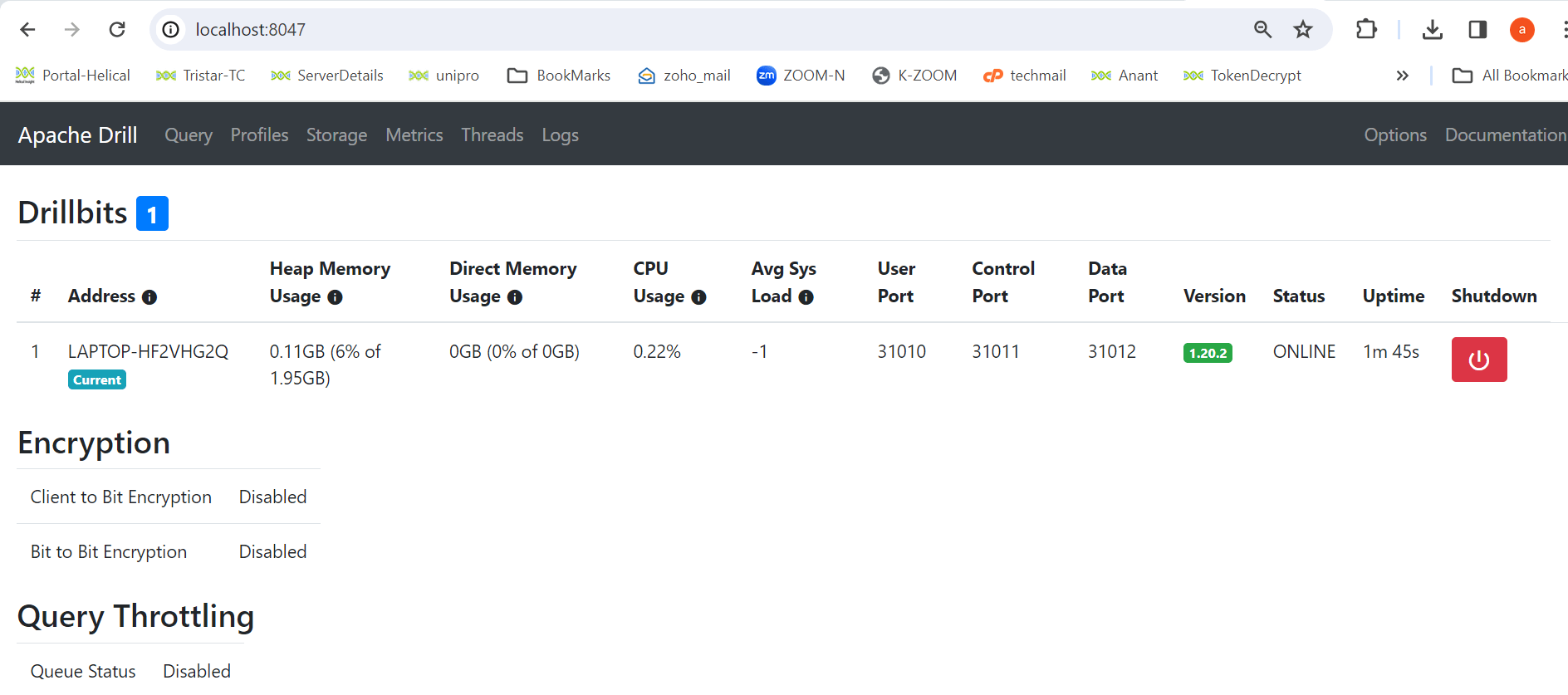

2. Once it is up you can access the Apache drill UI at https://:8047

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

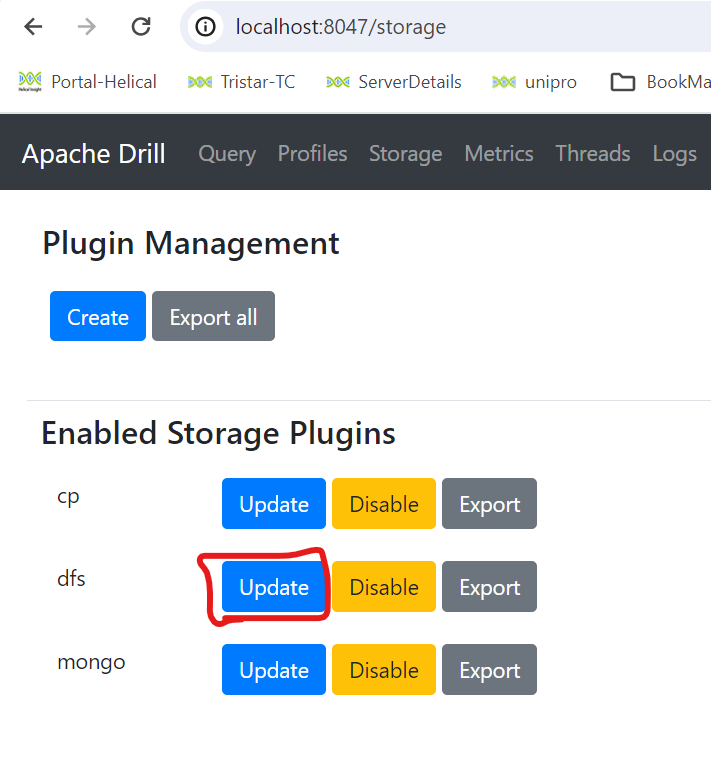

3. Go to storage and click on update of dfs. We should make the following changes in the configuration.

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

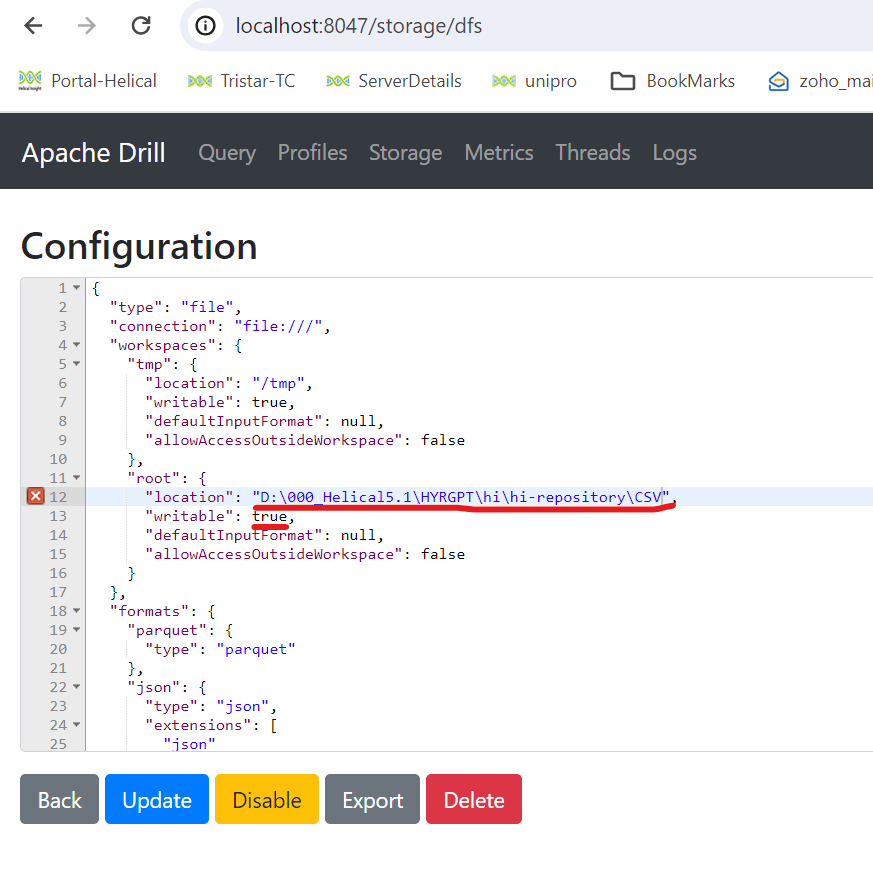

Inside root > provide your location where your CSV file are present

Make sure to create a folder and keep only csv files inside

Ex :

“location”: “D:/000_Helical5.1/HYRGPT/hi/hi-repository/CSV/”,

And update “writable”: true

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

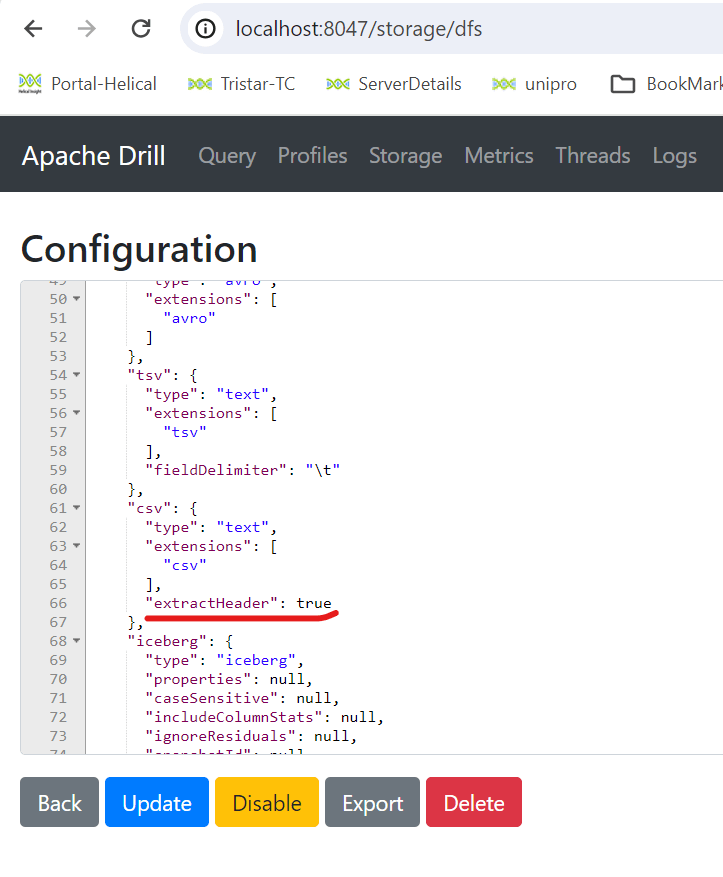

and also add “extractHeader”: true property for CSV json (only csv and excel need this property)

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

Once all the changes are done click on update

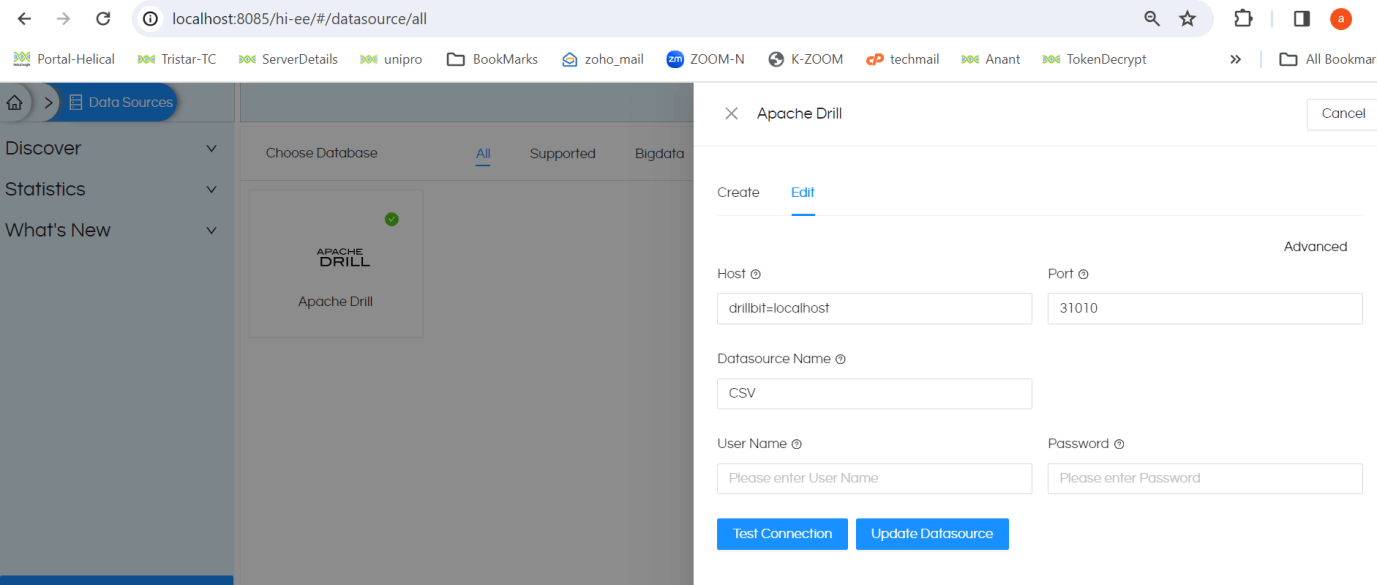

4. Now create data source connection in Helical Insight 5.1

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

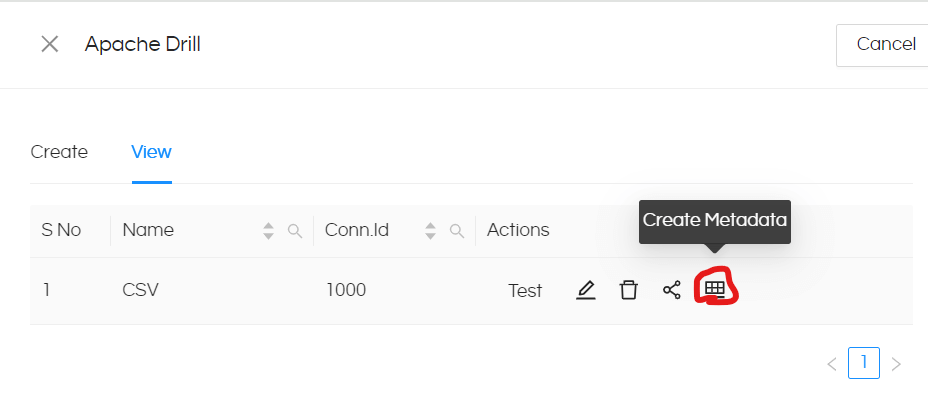

Click on test Connection once it is successful then save the data source and create metadata using the same connection

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

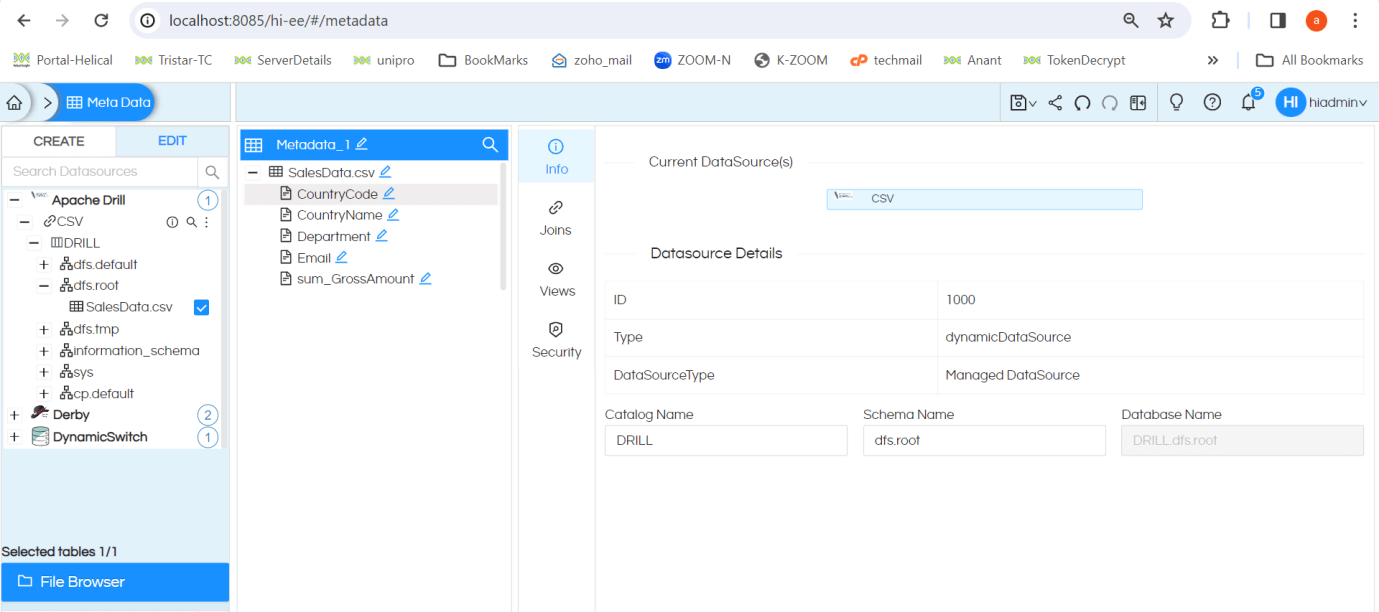

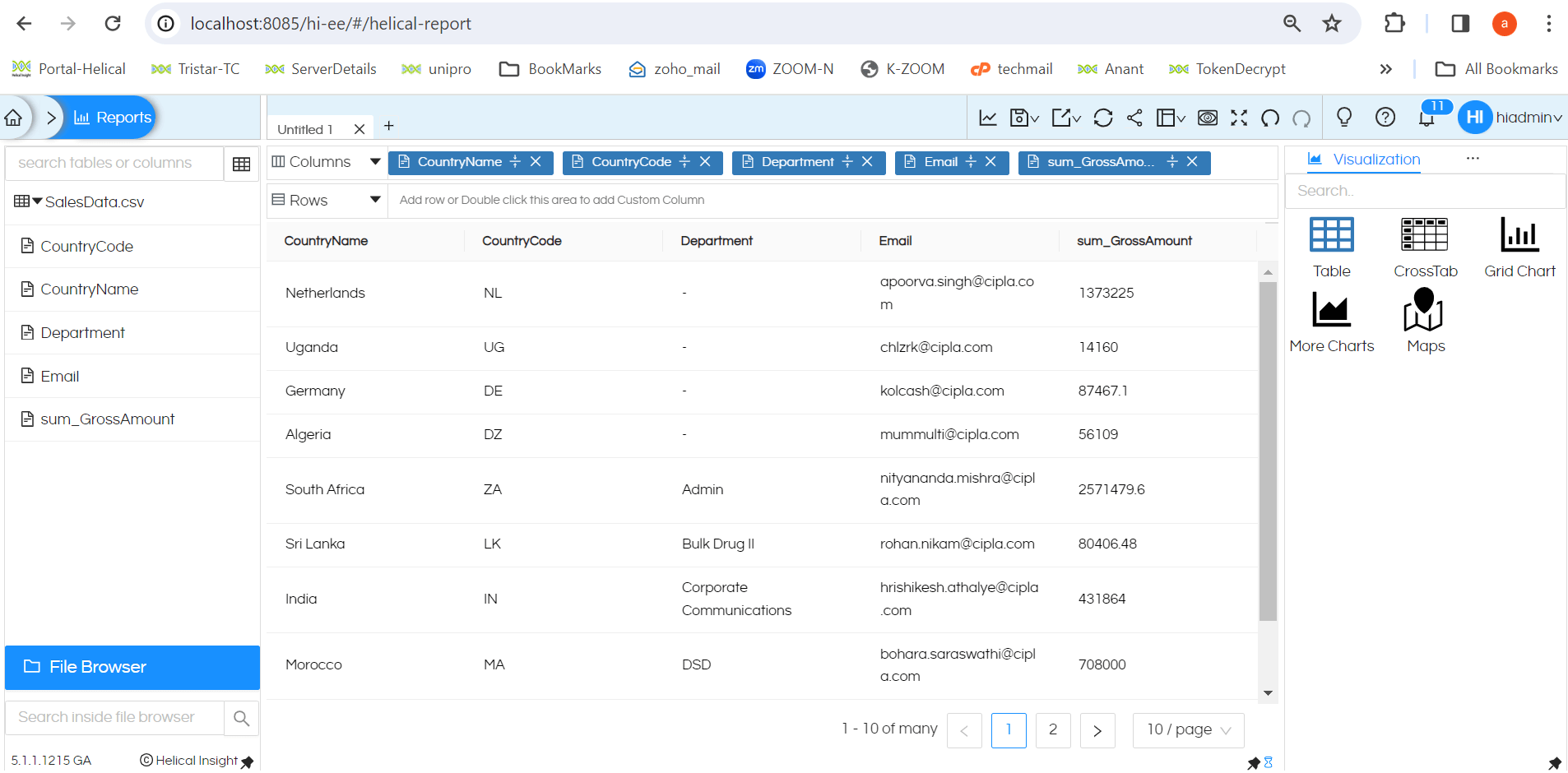

5. Save the metadata and create report

Connecting To Flat Files Using Apache Drill In Helical Insight 5.1

NOTE : Drill converts all the columns data type as text , we should convert data types as using DB functions / custom column/view in metadata in Helical Insight. You can refer to our other blogs to learn how to use them.
