How to Connect CelerData (StarRocks) to Helical Insight

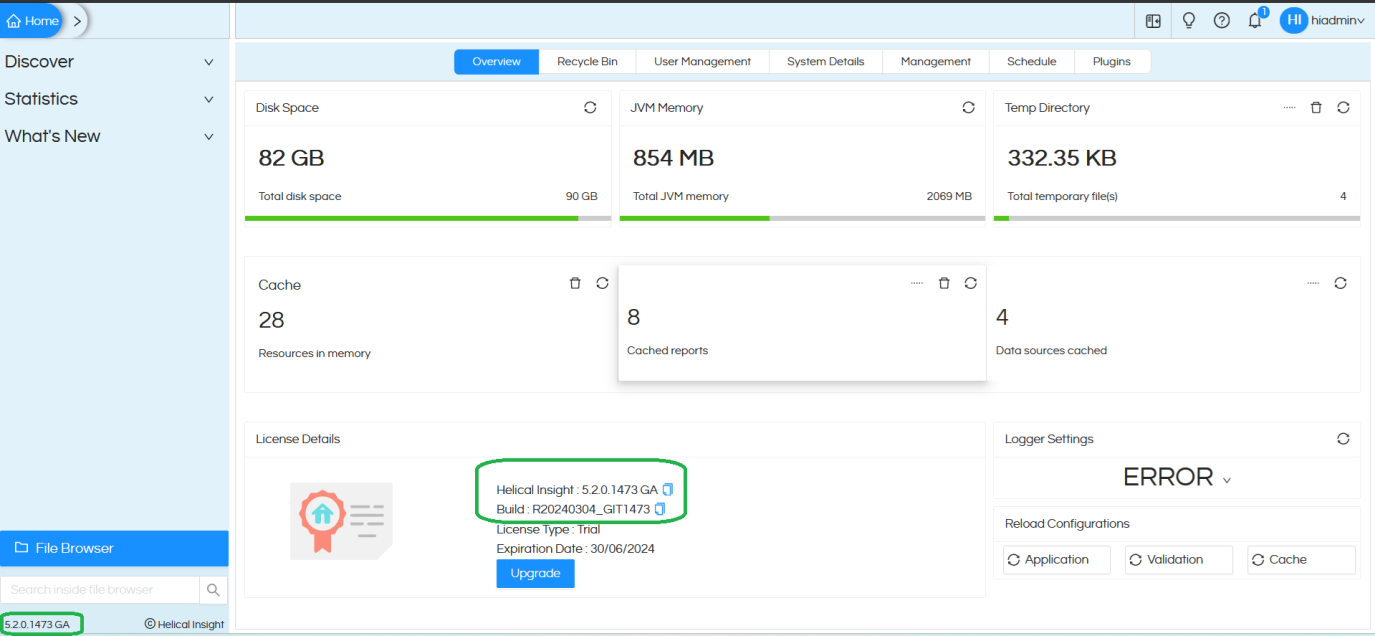

From the version 5.2 onwards of Open Source BI Helical Insight, we are directly supporting CelerData (CelerDB)/Starrocks out of the box. Hence the steps mentioned in this blog are not required. In the below image we have highlighted from where you can find out about the current version of your Helical Insight instance.

Helical Insight usage with SAP HANA

Connecting to Celeradata can be done like below

How to Connect CelerData (StarRocks) to Helical Insight

Ex:
Host: 0m49nk4hq.cloud-app.celerdata.com
Port: 9030
Database Name: celerdata_tpch_1703144600
Datasource Name: Celer_DB
User Name: admin
Password: **password**

If you are using version older than version 5.2, then only you need to refer to this blog in order to make it compatible with CelerData (CelerDB) /Starrocks.

CelerData (StarRocks): A real-time analytics platform powered by the StarRocks engine. It enables lightning-fast query execution on large datasets, even in real-time.

Designed for ease of use, with a user-friendly interface.Scalable and cloud-native, built for modern data analysis needs.

Key Features:

Lightning-fast performance: CelerData (StarRocks) claims to offer the industry’s best query execution speed, even on massive datasets and complex queries. This enables real-time insights for businesses.

Built on StarRocks: CelerData (StarRocks) leverages the open-source StarRocks SQL engine and MPP database, known for its speed and scalability.

Handles updates and deletes: Unlike some real-time analytics platforms, CelerData (StarRocks) can process updates and deletes in real-time, ensuring data accuracy.

Cloud-native and scalable: It’s designed for cloud environments and can scale horizontally to support growing data volumes and user needs.

Connect CelerData (StarRocks) to Helical Insight:

As Helical Insight is a Java-based open-source business intelligence framework. We required JDBC driver to connect

NOTE: CelerData (StarRocks) will work with MySQL JDBC driver,

By default, Helical Insight includes MySql Driver, Installation is not needed

Driver Installation setup:

Download JDBC driver here:

https://repo1.maven.org/maven2/com/mysql/mysql-connector-j/8.2.0/mysql-connector-j-8.2.0.jar

Now in Helical Insight UI go to Data sources

How to Connect CelerData (StarRocks) to Helical Insight

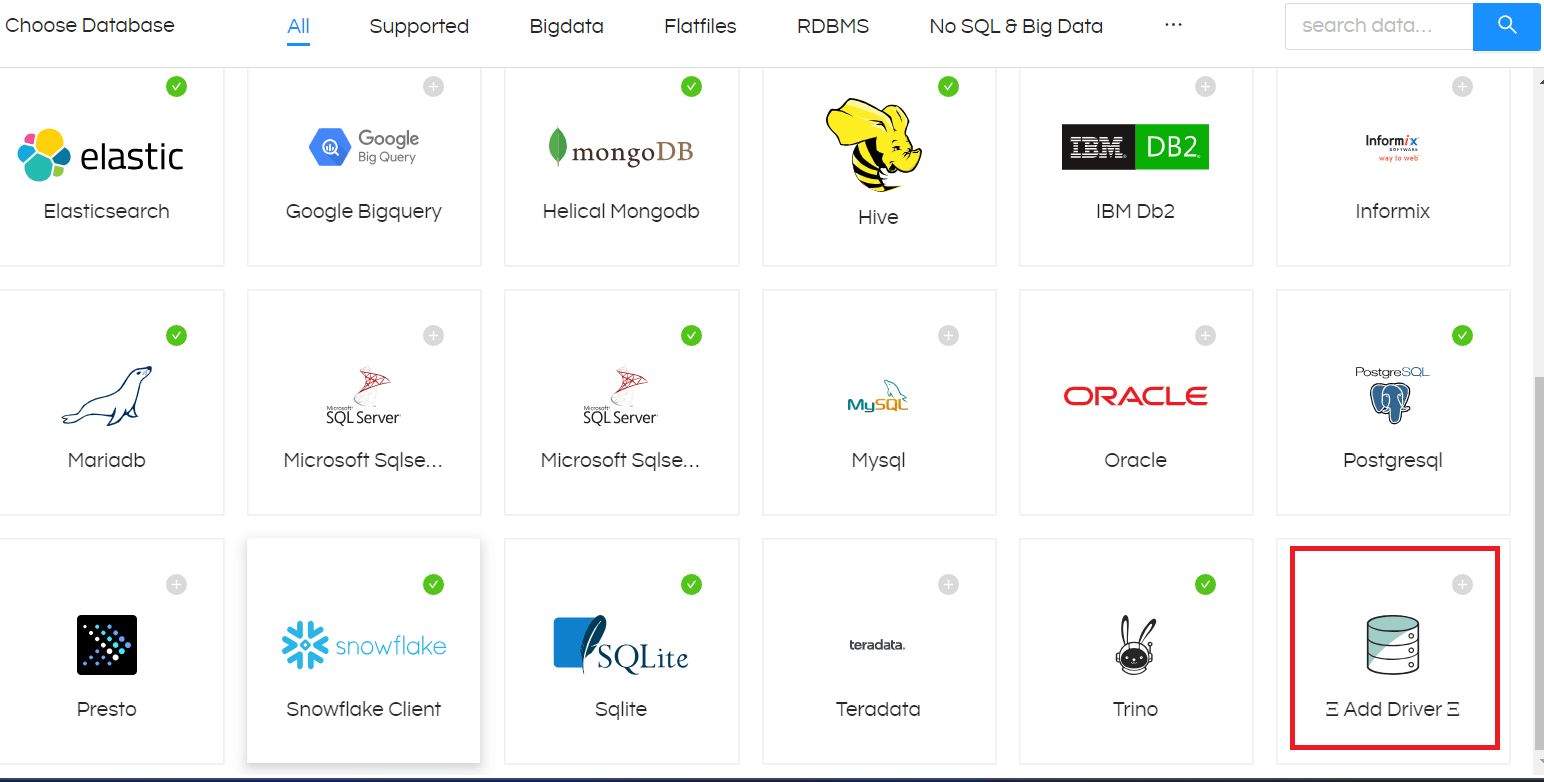

In list of Data Sources check the required driver if not there go to end and you can see add driver option and click on that

How to Connect CelerData (StarRocks) to Helical Insight

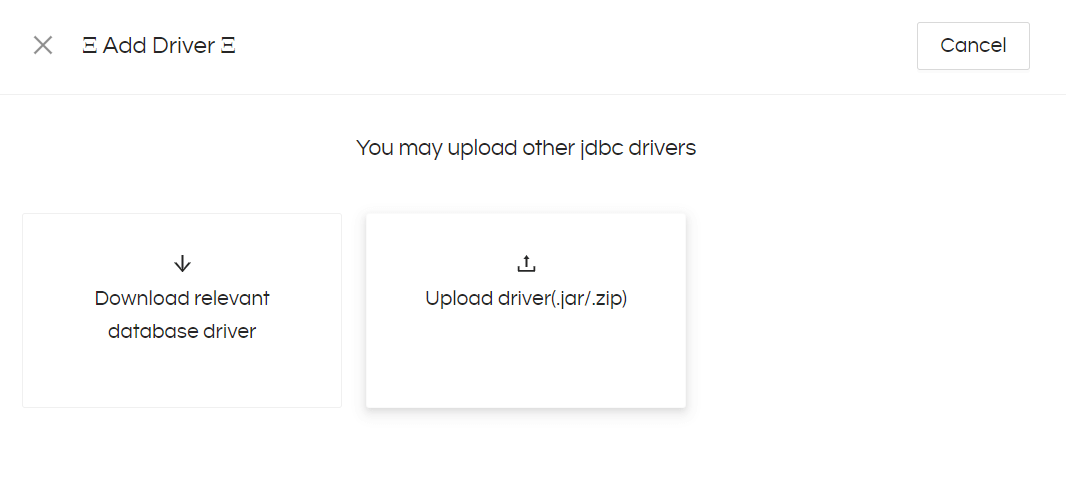

After clicking on that add driver you can see a new tab there

How to Connect CelerData (StarRocks) to Helical Insight

Up on Click on Upload driver and select the downloaded MySQL_jdbc driver

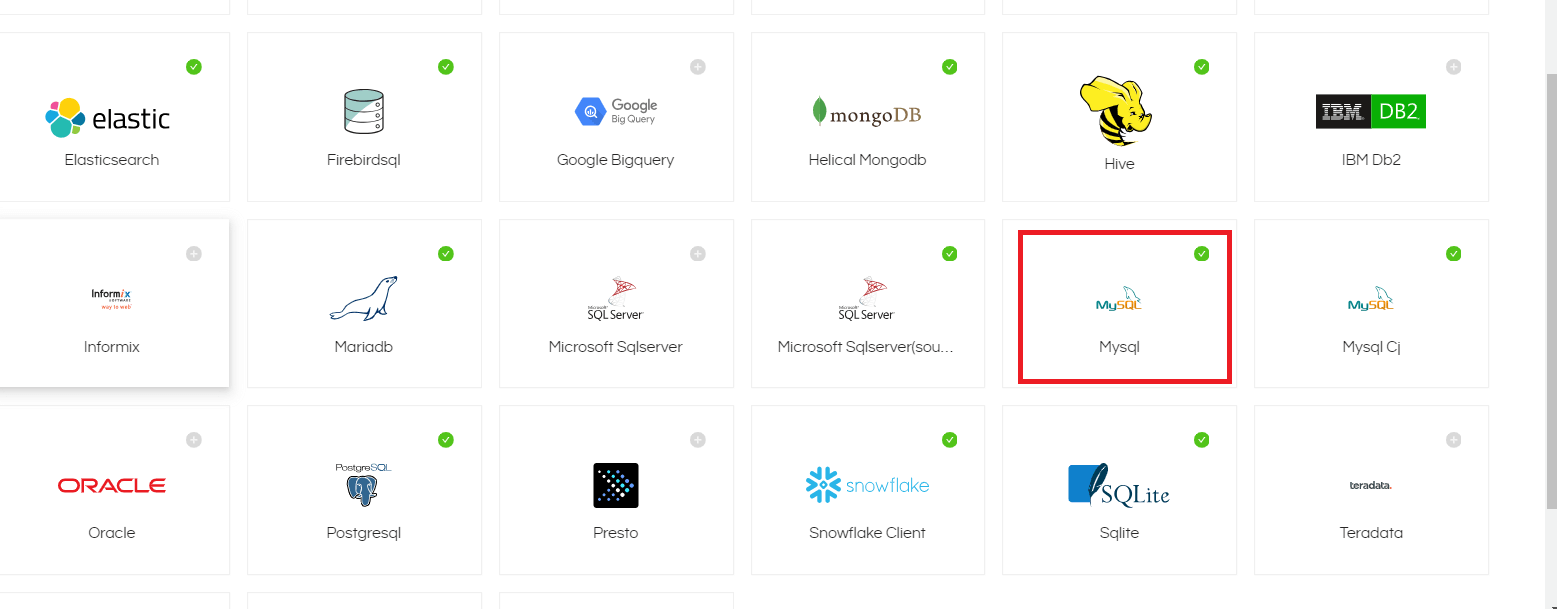

And refresh the page now you can see the MySQLdb driver in Data sources

How to Connect CelerData (StarRocks) to Helical Insight

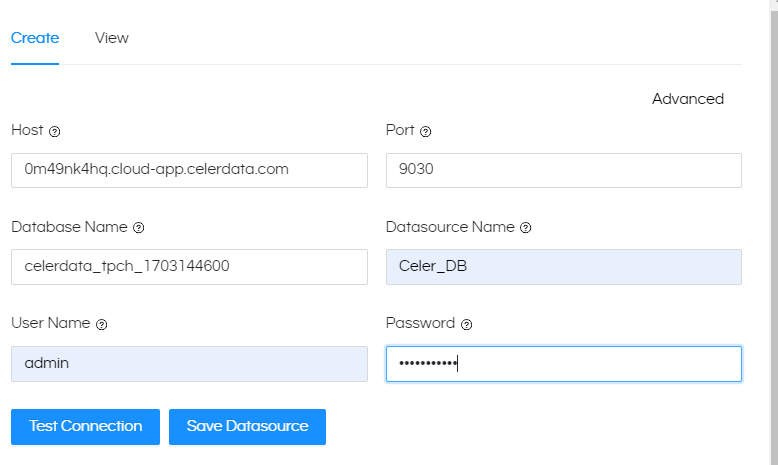

Now click on that MySQLdriver and give the required connection details

How to Connect CelerData (StarRocks) to Helical Insight

Ex:

Host: 0m49nk4hq.cloud-app.celerdata.com
Port: 9030
Database Name: celerdata_tpch_1703144600
Datasource Name: Celer_DB
User Name: admin
Password: **password**

Now test the Connection, After getting Connection successful, Save the Datasource.

Setting Up Configuration Files in Backend:

Link:
Replace XML and JS files to access Metadata and Functions of CelerData (StarRocks)
Link: Celerdata (StarRocks)

XML and JS files:
Path: …\hi\hi-repository\System\Admin\SqlFunctions
Go to this path and paste(replace) the mysql.xml and mysql.js file

After completing above steps need to restart the HI application

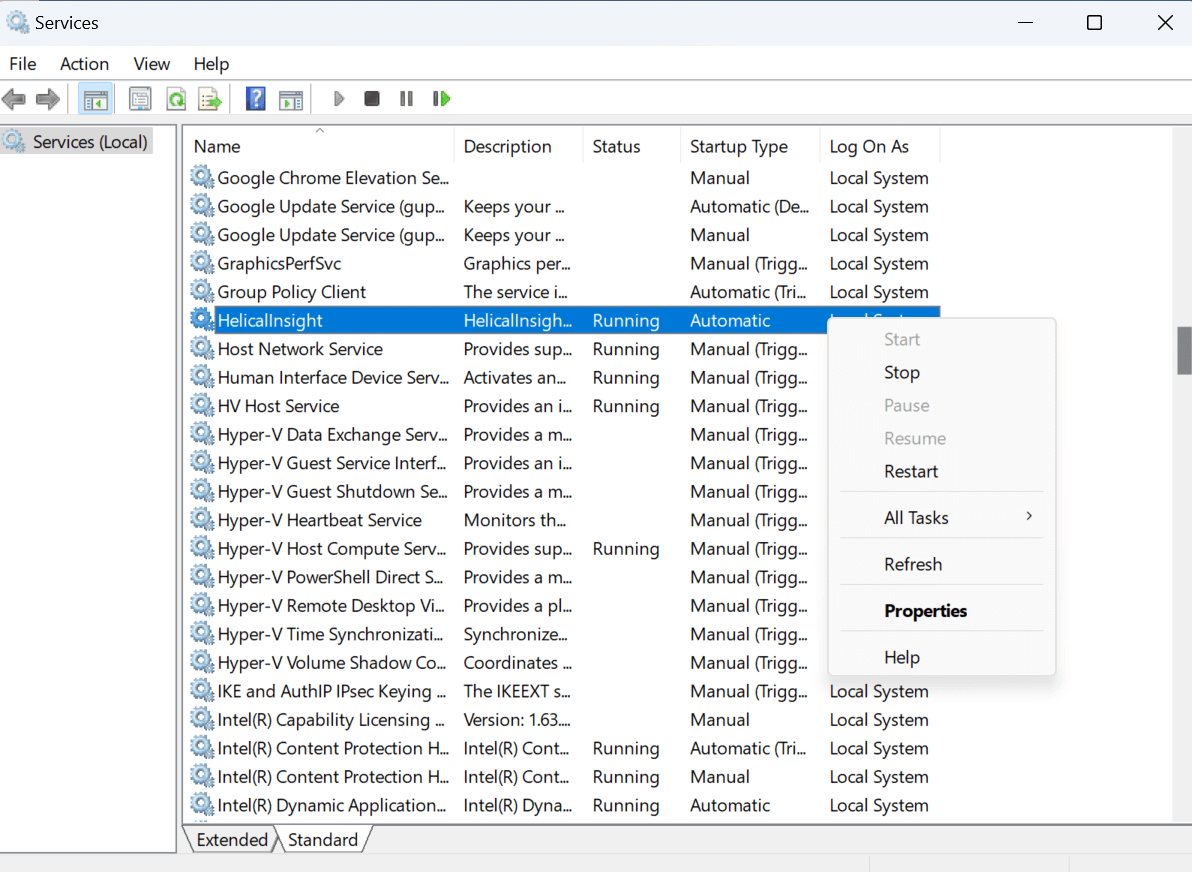

Restarting in Windows: By putting “Services.msc” in run bar you can open the list of services.Steps: search ‘Services’ in search bar

Now you can see list of services running find Helical Insight and right click and restart it will restartin few seconds.

How to Connect CelerData (StarRocks) to Helical Insight

After restarting you can access CelerData (StarRocks) metadata and functions at report level in Helical Insight. You can create metadata and start creating reports.

In a similar way for restarting Helical Insight service on linux machine,

For Linux , to check the status of the service, run the following command:

service HelicalInsight status

You can restart the service by running the following set of commands:

service HelicalInsight stop

service HelicalInsight start

Please note that all the above commands must be run with sudo permissions.
