Implementing load balancing in Trino

For many of our use cases we are making use of Trino, for example connecting to Mongo, multi db connection when using with Open Source BI product Helical Insight etc. A Trino multi-node setup provides scalable, high-performance, and fault-tolerant data processing with efficient resource utilization and enhanced query parallelism.

In this blog we are going to cover how can you setup Trino on multiple load balancing mode so that the SQLquery execution can happen in parallel, thus helping in better performance as well as a fault tolerant server in case if one server goes down users requests will still be getting processed.

Setting Up a MultinodeTrino Cluster:

Setting up a multinodeTrinocluster involves configuring a coordinator node and one or more worker nodes. Here’s a step-by-step guide for setting up Trino on two servers: one as the coordinator and the other as the worker

1. Install trino on server1

Please refer to the following documentation link regarding how to install Trino

https://helicaltech.com/installing-trino-in-linux-server/

2. Configure Trino Coordinator:

Create the following configuration files in the etc directory of your Trino installation.

node.properties:

node.environment=production
node.id=ffffffff-ffff-ffff-ffff-ffffffffffff
node.data-dir=/var/trino/data

Note: The node.id should be a unique hexadecimal value

jvm.config:

-server
-Xmx4G
-XX:InitialRAMPercentage=80
-XX:MaxRAMPercentage=80
-XX:G1HeapRegionSize=32M
-XX:+ExplicitGCInvokesConcurrent
-XX:+ExitOnOutOfMemoryError
-XX:+HeapDumpOnOutOfMemoryError
-XX:-OmitStackTraceInFastThrow
-XX:ReservedCodeCacheSize=512M
-XX:PerMethodRecompilationCutoff=10000
-XX:PerBytecodeRecompilationCutoff=10000
-Djdk.attach.allowAttachSelf=true
-Djdk.nio.maxCachedBufferSize=2000000
-XX:+UnlockDiagnosticVMOptions
-XX:+UseAESCTRIntrinsics

config.properties:

coordinator=true
node-scheduler.include-coordinator=true
http-server.https.enabled=false
http-server.http.port=8080
query.max-memory=5GB
query.max-memory-per-node=1GB
discovery-server.enabled=true
discovery.uri=http://:8080
internal-communication.https.required=false
internal-communication.shared-secret=Testing@Helical2024

Note: The shared-secret should be the same in both the coordinator and worker configuration files.

log.properties:

io.trino=INFO

3. Start the Coordinatortrino server

Worker Configuration :

  1. Install trino on this server as well.
  2. Configure Trino Workers:

Create the following configuration files in the etc directory of your Trino installation on each worker node.

node.properties:

node.environment=production
node.id=9b43ef75-8cf0-4e4f-8aca-27eaf75fa83e
node.data-dir=/var/trino/data

Note: The node.id should be a unique hexadecimal value

jvm.config:

-server
-Xmx4G
-XX:InitialRAMPercentage=80
-XX:MaxRAMPercentage=80
-XX:G1HeapRegionSize=32M
-XX:+ExplicitGCInvokesConcurrent
-XX:+ExitOnOutOfMemoryError
-XX:+HeapDumpOnOutOfMemoryError
-XX:-OmitStackTraceInFastThrow
-XX:ReservedCodeCacheSize=512M
-XX:PerMethodRecompilationCutoff=10000
-XX:PerBytecodeRecompilationCutoff=10000
-Djdk.attach.allowAttachSelf=true
-Djdk.nio.maxCachedBufferSize=2000000
-XX:+UnlockDiagnosticVMOptions
-XX:+UseAESCTRIntrinsics

config.properties:

coordinator=false
http-server.http.port=8080
discovery.uri=http://:8080
internal-communication.shared-secret=Testing@Helical2024

Note: The shared-secret should be the same in both the coordinator and worker configuration files.

log.properties:

io.trino=INFO

3. Start the Workertrino

Thus we have configured 2 trino instances.

Verification and Management:

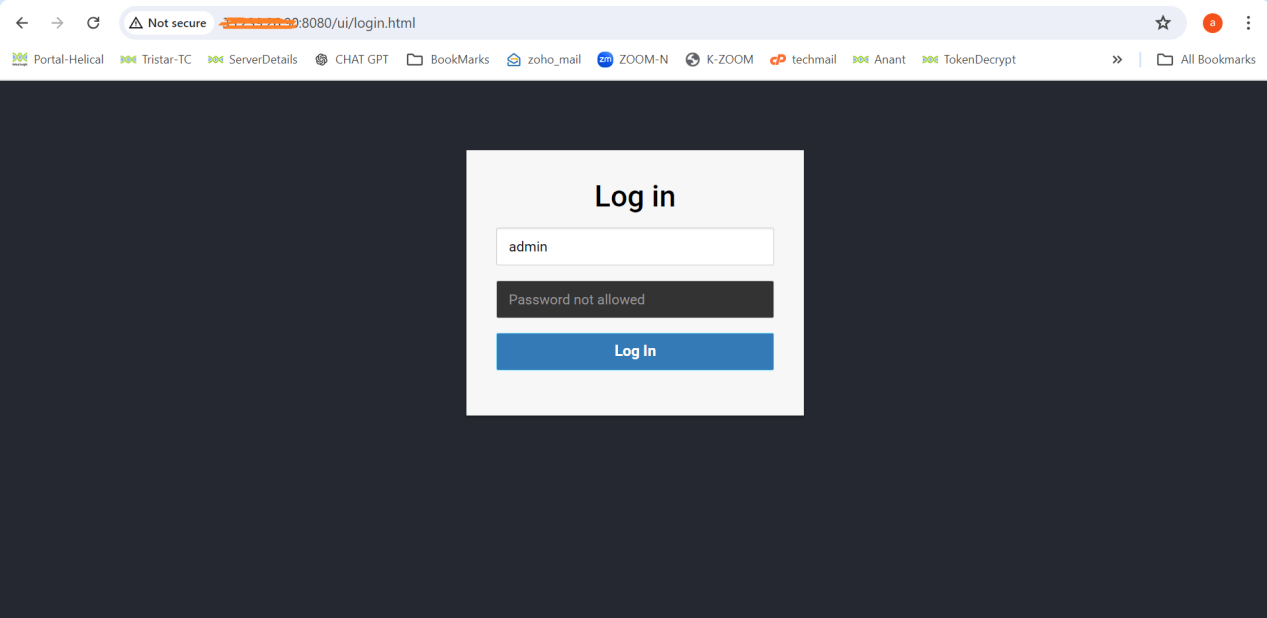

Access the Trino web UI at http://:8080 and ensure all workers are listed and active.

Note: The Trino port should be open between the two servers for communication.

Implementing load balancing in Trino

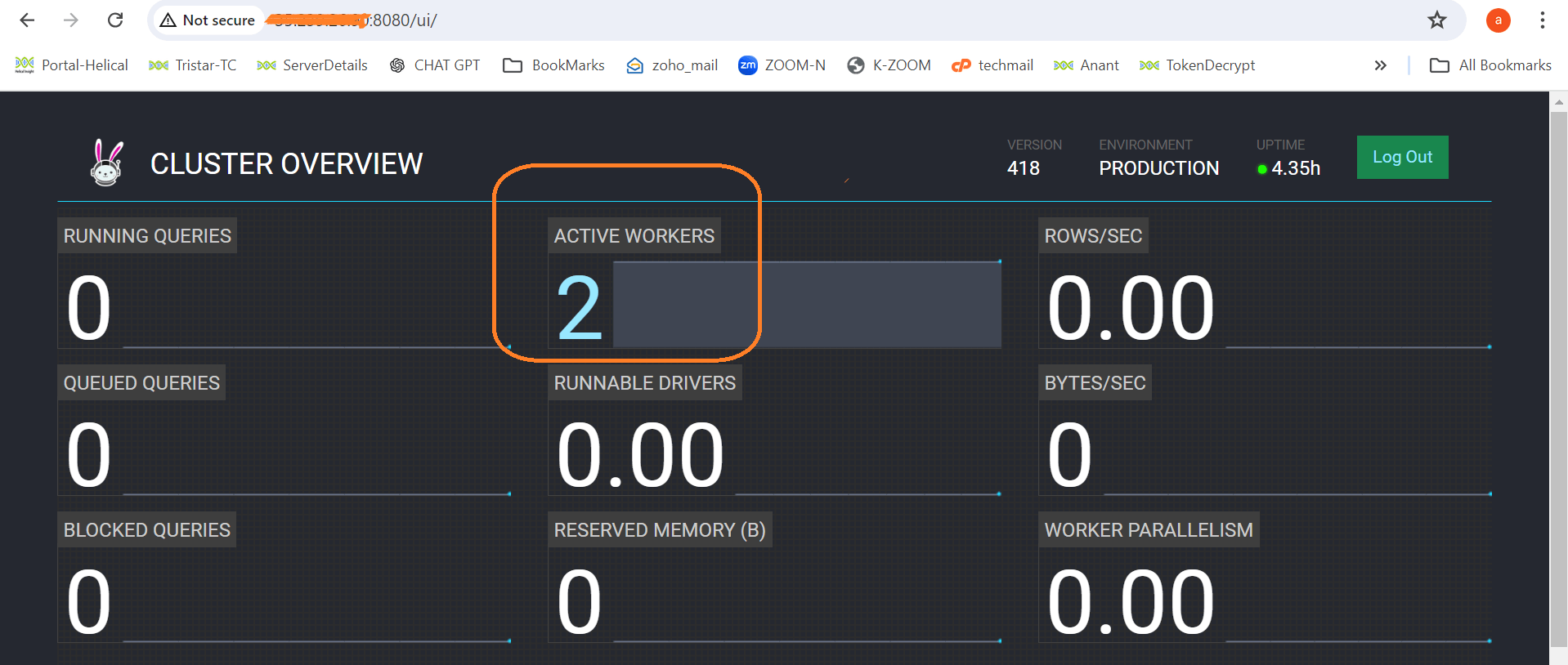

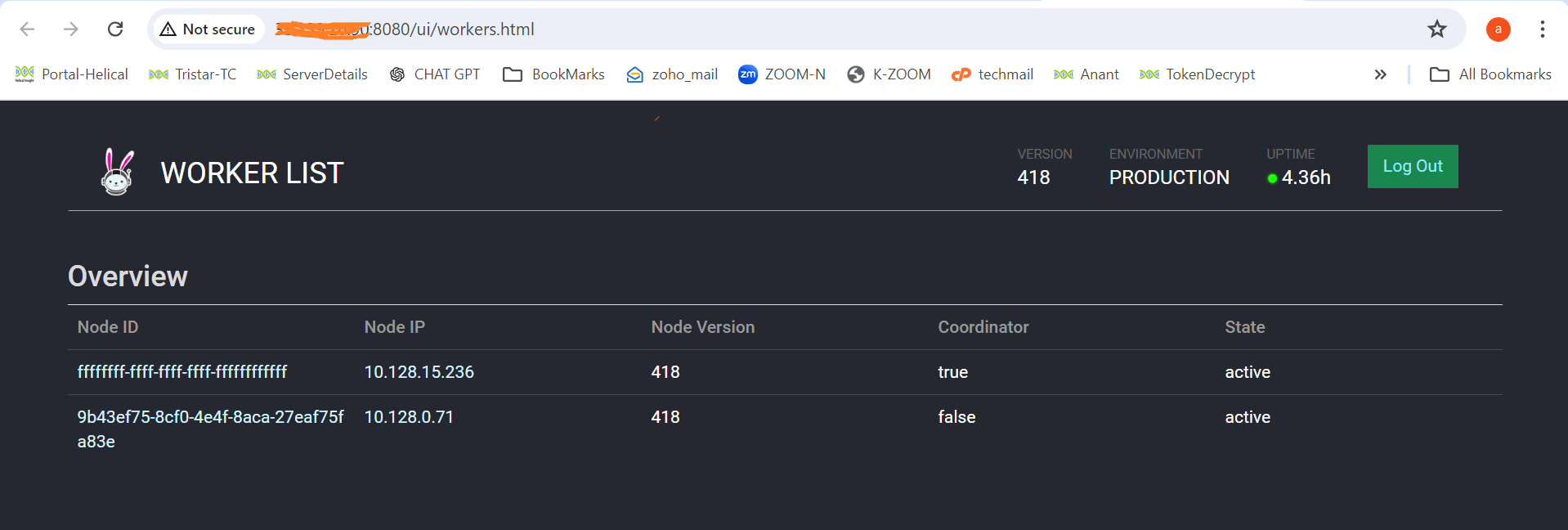

It should show 2 active workers

Implementing load balancing in Trino

Implementing load balancing in Trino

Please reach out to support@helicalinsight.com in case of any questions.
