Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

Below are the steps in order to provide SQL Server 2017 Database as Datasource in SQL Server

Installation of SQL Server

  1. Download the JDBC driver for SQL Server http://clojars.org/repo/com/microsoft/sqlserver/sqljdbc4/4.0/sqljdbc4-4.0.jar
  2. Add this downloaded driver in \hi\hi-repository\System\Drivers
  3. Open Control Panel\System and Security\Windows Defender Firewall
  4. Turn off the Firewall
  5. Click on Advanced Settings
Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

6. Right click on Inbound Rules

Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

7. Click on New Rule

8. Select Port in type of rule and click on Next

9. Apply rule to TCP, provide 1433 in Specific local ports and click on Next

10. Select Allow the connection in Action and click on Next

11. Apply the rule for Profiles required and click on Next

12. Provide a name for the Inbound Rule and click on Finish

13. Open Sql Server Configuration Manager

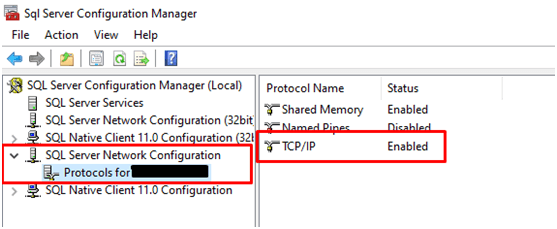

14. Set TCP/IP status as enabled in Protocols

Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

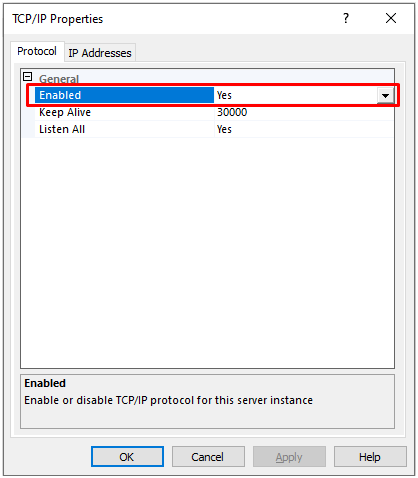

15. Double click TCP/IP and set Enabled as Yes and click on OK

Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

16. Open Services and restart SQL Server

Creating DataSource to connect to SQLServer

  1. Now go to Helical Insight DataSources
  2. Click on Microsoft Sqlserver DataSource
Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

3. Provide the details as below

Installation of SQL Server on windows & Creating data source connection in Helical Insight to SQL Server

4. Click on Test Connection to test the connection

5. Click on Save DataSource

In case if you have any queries please get us at support@helicaltech.com

Thank You
