How to connect Amazon Redshift with Helical Insight

In this article we will cover, in detail, how we can connect Amazon Redshift data source using Helical Insight and create reports/dashboard using it.

Prerequisites :

1. Amazon Redshift Cluster instance on Amazon Web Services.

Following are the steps to create report with Helical Insight using Amazon Redshift:

1. Dialect Configuration
2. Datasource Creation
3. Metadata Creation
4. Adhoc Reports

Dialect Configuration

Dialect is used for generating SQL query as per the database selected. In Helical Insight Application, following are the steps to configure dialect :

1. Go to hi-repository/System/Admin.






2. Open “sqlDialects.properties” file in edit mode using text-editor such as notepad, notepad++.
3. Add the below present line at the end of the file in a new line.

   com.amazon.redshift.jdbc.Driver=org.hibernate.dialect.PostgreSQLDialect

4. Now, save the file.

Note : In case, dialect is not assigned then by default MySQL dialect is mapped with the selected database. In result, a sql query will be generated which may or may not support the selected database.

This process involves establishing a connection between Helical Insight application and a Source Databases.



There are 2 methods available for creating a Datasource in Helical Insight:

1. Front End Approach
2. Back End Approach

Following are the steps shown below to create datasource using available methods :



Method 1 : Front End Approach

1. Login to Helical Insight Application.  ( For default credentials, click here )
2. Click on “Home” button and select “Adhoc” from the list.

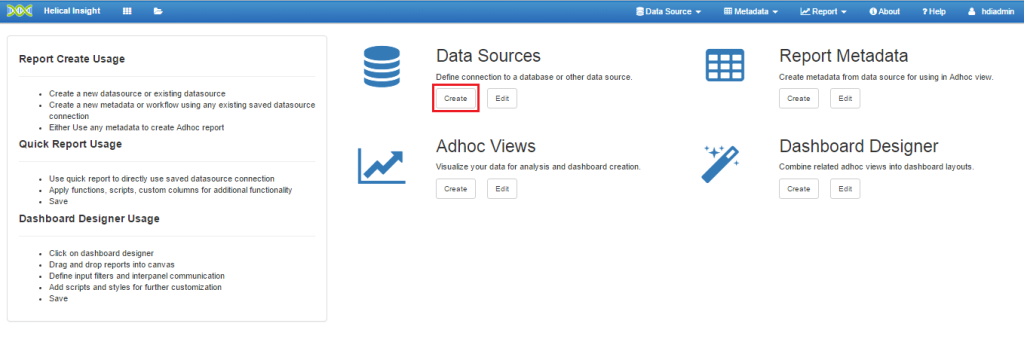

3. On entering Adhoc Page, click on “Create” button in Datasources







4. Select the “DataSource Type” from the given list. In this case, “Managed Datasource” will be used.
5. Then, enter “DataSource Name” say “redshift cluster” ( any name can be assigned ) and select driver from the given list. Here, redshift jdbc driver will be selected with the name “com.amazon.redshift.jdbc.Driver”.




Note :
In case, the redshift database driver is not present in the list then externally the list can be updated.

Following are the steps to update list :

1. Download the latest Amazon Redshift JDBC Driver. Click here to download.
2. Once you have downloaded the driver, you need to put that driver in a specific folder and then immediately it will start appearing in the drop down list of Datasource. Click here for more details




6. Enter the URL which is a JDBC URL. Like one shown below






Sample URL :

jdbc:redshift://hirdstest.cuqoxvtywysw.us-west-2.redshift.amazonaws.com:5439/hidbtest

7. Enter Username which is a Master Username.
8. Then, enter Password which is a Mater Password.

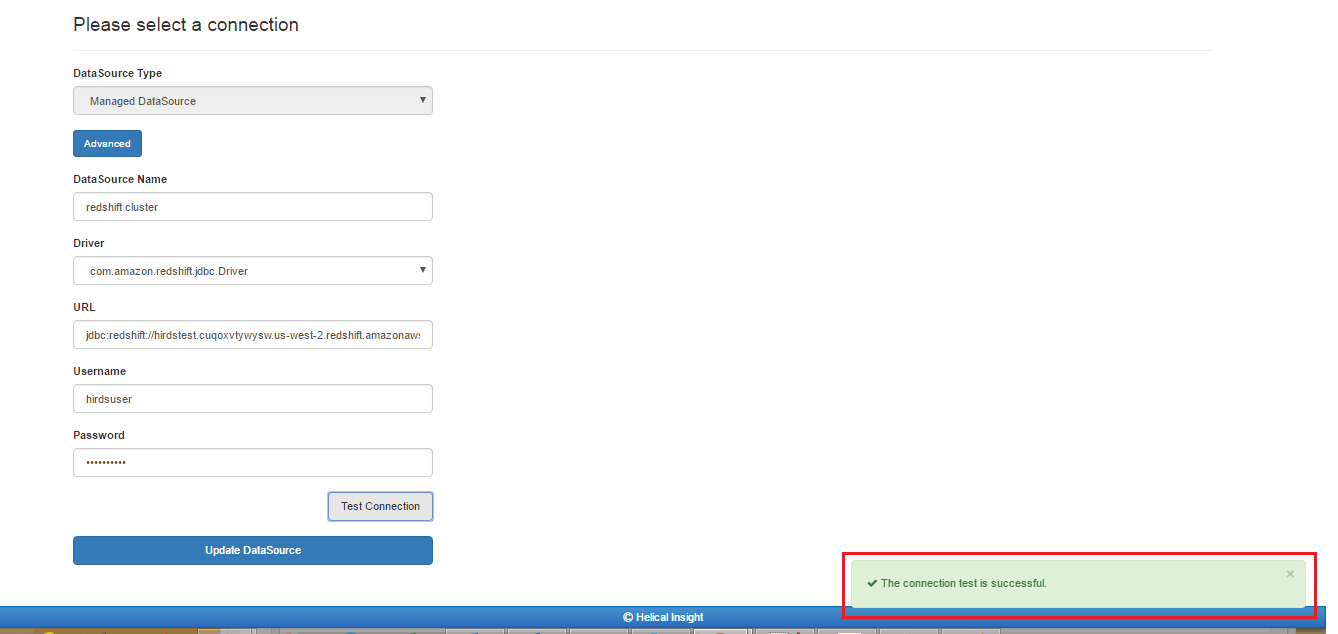

9. Now, click on “Test Connection” in order to verify entered credentials.







10. After clicking Test Connection, if the connection is established then a notification “The connection test is successful” appears.

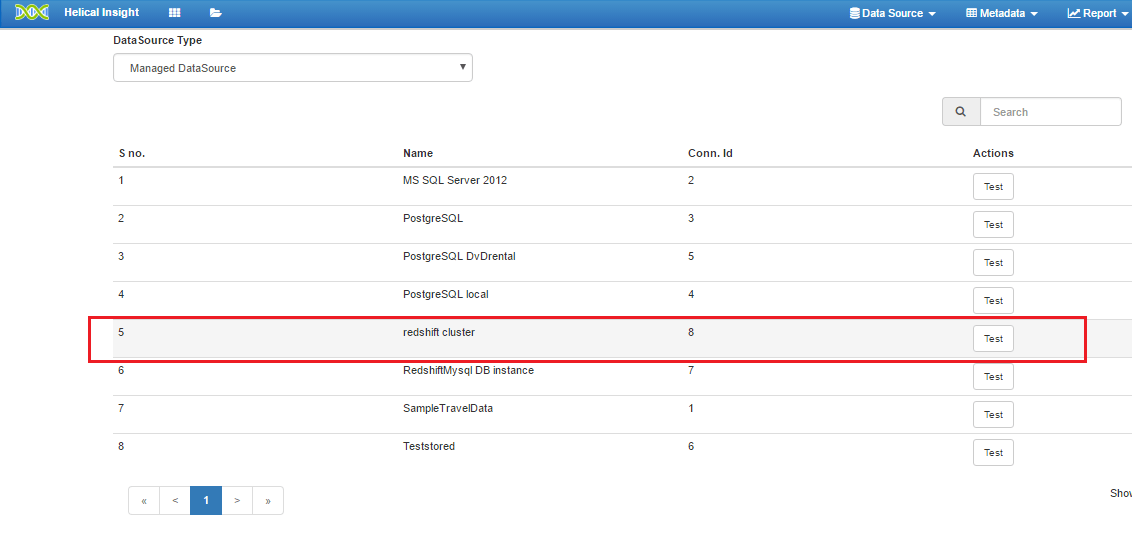

11. Click “Save DataSource”
12. Hereon, a connection is established with an intended redshift cluster present on Amazon Server.




Note:
If there are multiple redshift cluster present on Amazon Server then separate datasource connection needs to be created in Helical Insight.

13. Then, next step involves creation of metadata. After saving datasource, from the same page, click on “Metadata” (at the top right )
14. Then, click on “Workflow”.

Further steps will be covered in “Metadata Workflow” step.

Method 2 : Back End Approach

1. Go to “hi-repository” folder where a Helical Insight Application is installed and then open the folder.

C:\Helical Insight\hi-repository

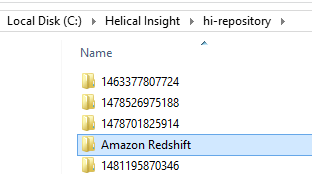

2. Create a New Folder with any name say “Amazon Redshift” inside “hi-repository” folder.





3. Now, open a text-editor like notepad, notepad++ , and so on.
4. Then enter the following details as given below :

<EFWD>
    <DataSources>
         <Connection id="1" name="Redshift Cluster EFWD" type="sql.jdbc">
             <Driver>com.amazon.redshift.jdbc.driver</Driver>
             <Url>jdbc:redshift://hirdstest.cuqoxvtywysw.us-west-2.redshift.amazonaws.com:5439/hidbtest</Url>
             <User>hirdsuser</User>
             <Pass>Hirdsuser1</Pass>
         </Connection>
    </DataSources>
</EFWD>

• Connection ID : User can assign any ID (numeric and unique)
• name : Name of the Datasource to be shown in the Datasource list

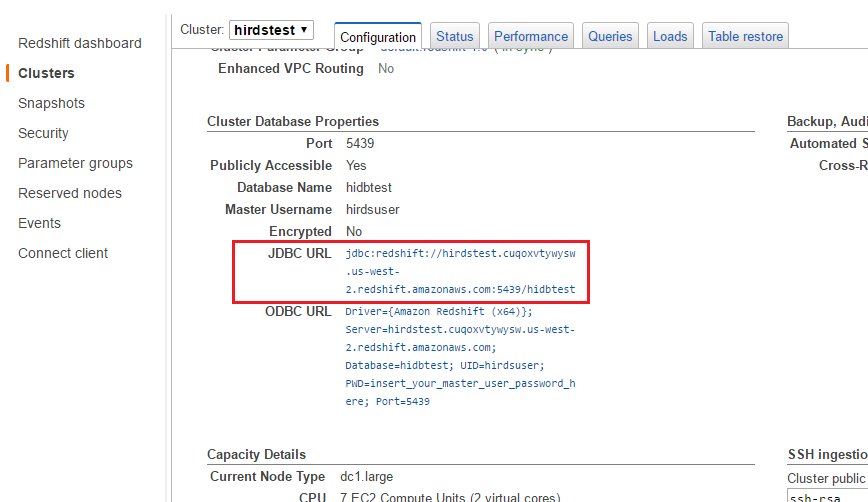

• Url : JDBC URL can be accessed from Cluster Configuration details. Like one shown below.




• User: Database Username
• Password: Database password




5. After entering the details, save the file as “filename.efwd”

   Note: Saved file has to be present inside the “Amazon Redshift” folder of “hi-repository“.

6. Now, the Redshift connection has been established. ( if entered details are correct )
7. Then, next step involves creation on metadata.
8. Now, login to Helical Insight Application using any web browser.
9. Click on “Home” button and select “Adhoc” from the list.
10. Then, Click on “Metadata” Tab and then select “Workflow”.

Further steps will be covered in “Metadata Workflow” step.

Create Metadata

For creating a metadata it is mandatory to have established datasource connection which is explained in create datasource.

1. On clicking “Workflow” from “Metadata” tab, “Datasource Type” selection page is displayed.



2. Select the “DataSource Type” from the given list.
• For Method 1 : Select DataSource Type: Managed Datasource

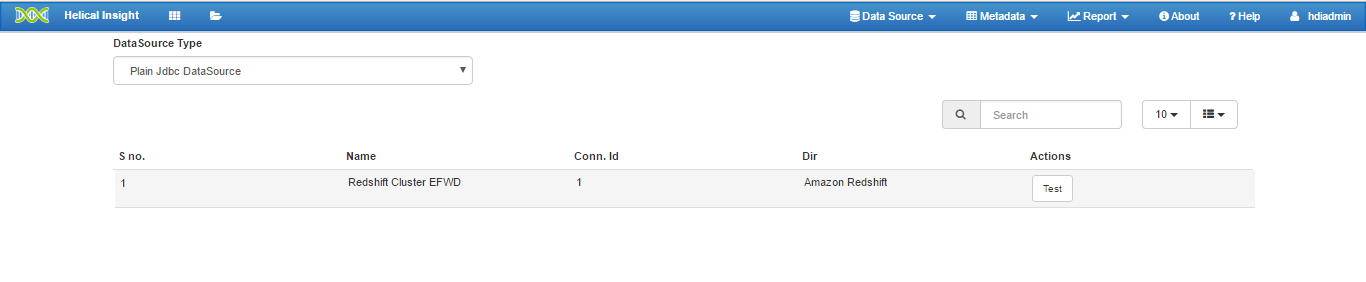

• For Method 2 : Select DataSource Type: Plain JDBC Datasource




3. Click on the Datasource Name using which metadata will be created.
• For Method 1 : Datasource Name “redshift cluster” is used. Any name can be assigned during configuration of datasource.






• For Method 2 : Datasource Name “Redshift Cluster EFWD” is used. Any name can be assigned during configuration of datasource in efwd file.

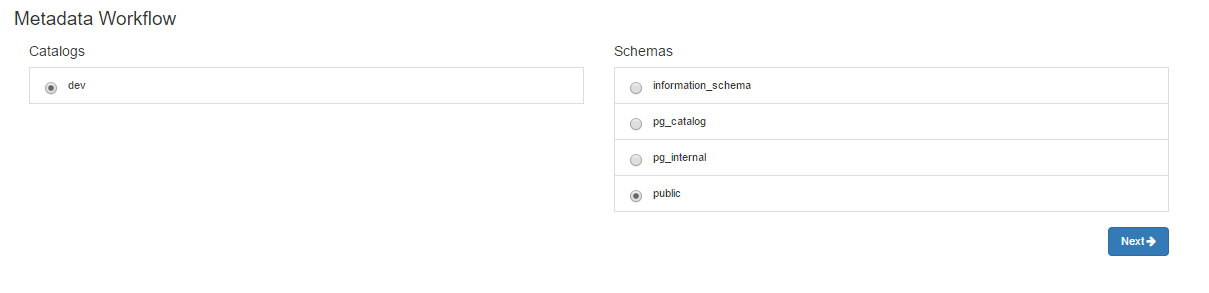

4. After clicking the datasource name, a window will show available catalogs and schemas. Now click one radio button to select intended catalog and schema (here schema selected is public)

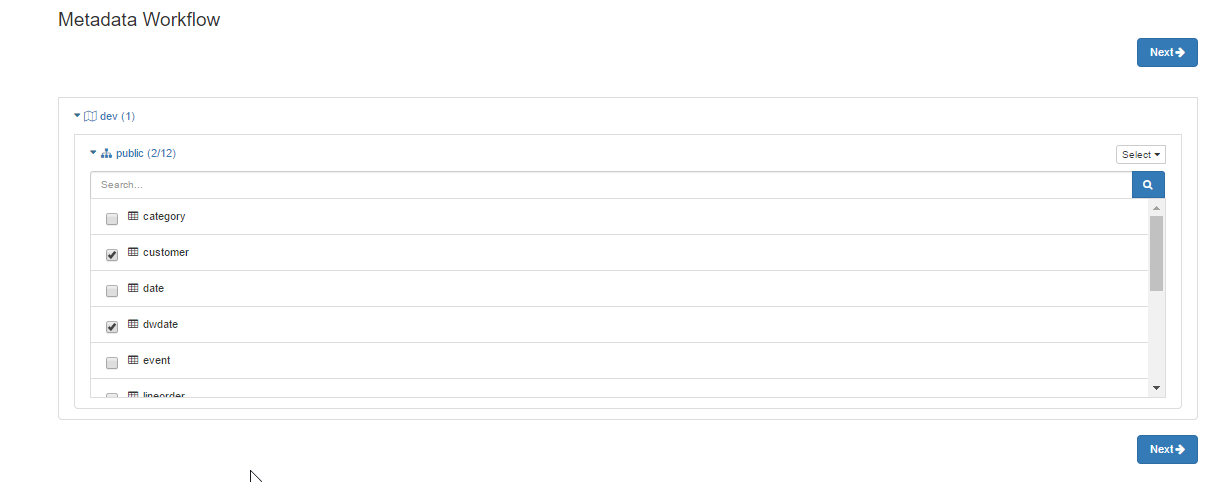

5. Now, select the required table from table list, and click Next

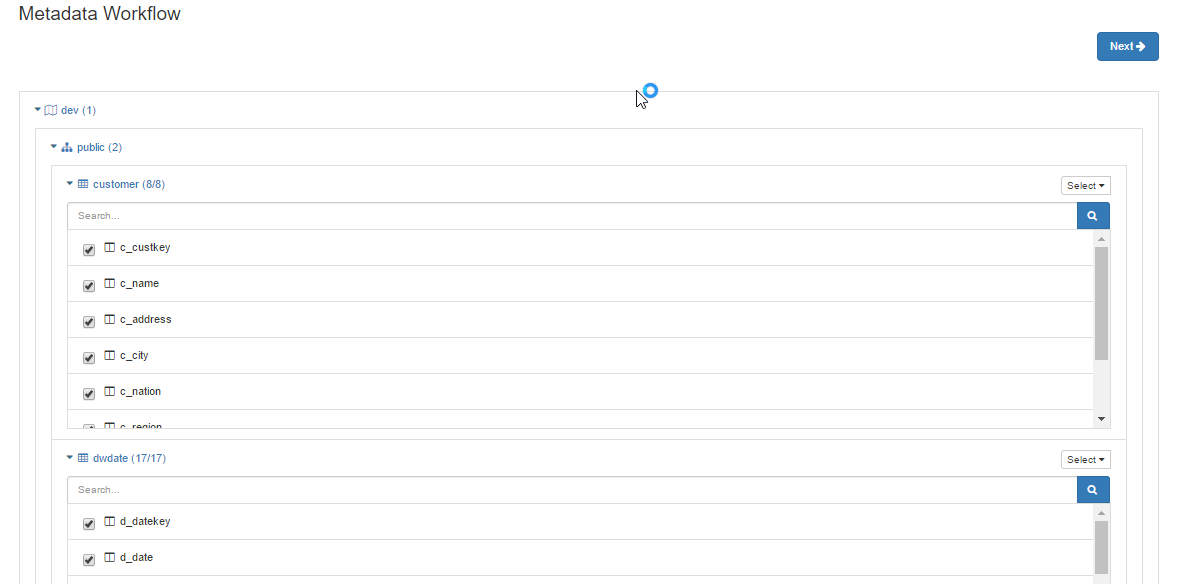

6. After table selection, select required columns from selected tables, and click Next

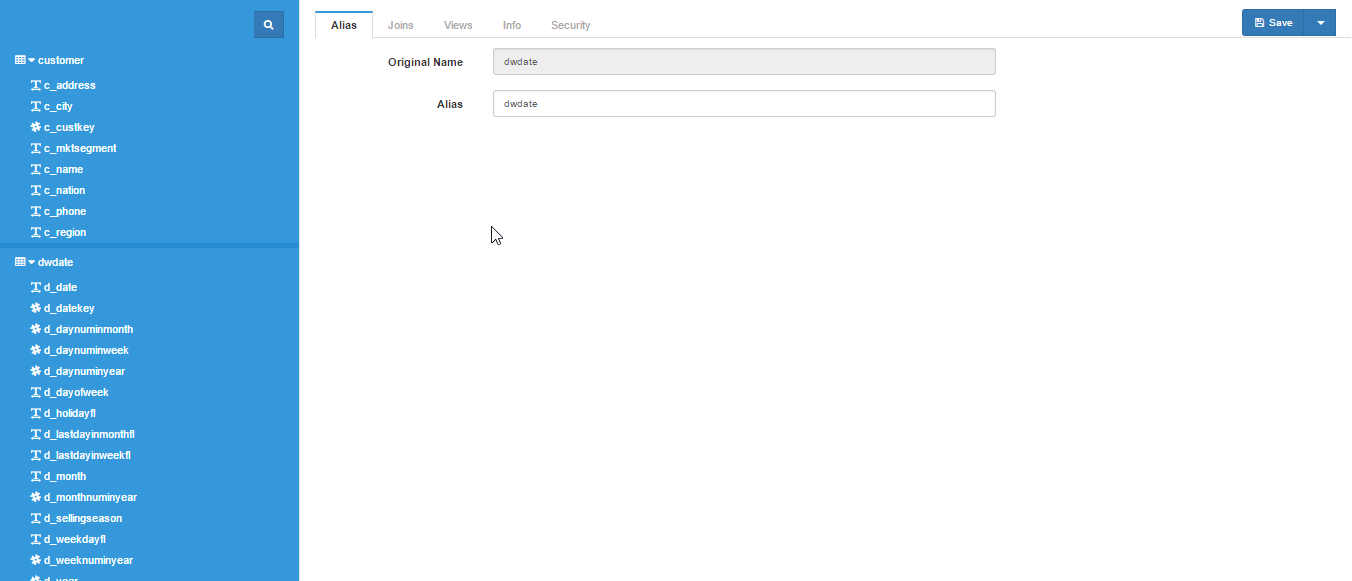

7. Now , a metadata page appears where various operations can be performed such as table/column aliasing, defining joins, creating views and apply table/column/data security conditions.




8. Click on “Save” to create metadata.
9. After clicking “Save” button, a window will appear known as File Browser. Using File Browser, a metadata file is saved in the file-repository of Helical Insight.
10. Then, click on “Save Metadata” to confirm.
11. Now, metadata file is ready for creating Adhoc Reports.

Adhoc Reports :

Now using created Redshift metadata you can create adhoc report, how to create Adhoc Report, click here




For further assistance, kindly contact us on support@helicalinsight.com or post your queries at forum.helicalinsight.com
