How to use TreeMap VF in Helical Insight

In this article you will learn how to integrate TreeMap Chart of D3 using VF option in Helical Insight and generate report.

sample-d3-treemap

A Treemap is used for visualizing hierarchical structure or tree-structure data which are split up into sized rectangles.

Steps :

1. Download this

file.

2. The unzipped folder, named “VF FILES”, is to be placed in the HI file repository.

3. Detailed explanation on adding the created VF-File in an Adhoc report, will be found here

4. Download this file vf.js Replace the vf.js file present at location:
…\hi\apache-tomcat-9\webapps\hi-ee\js\adhoc\visualisations

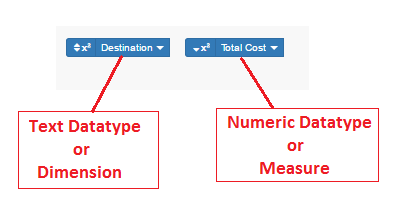

The attached VF-file for Treemap D3 Chart makes use of two fields:

  • First Field : Dimension
  • Second Field : Measure

Example :
treemap-required-column-details

Output:

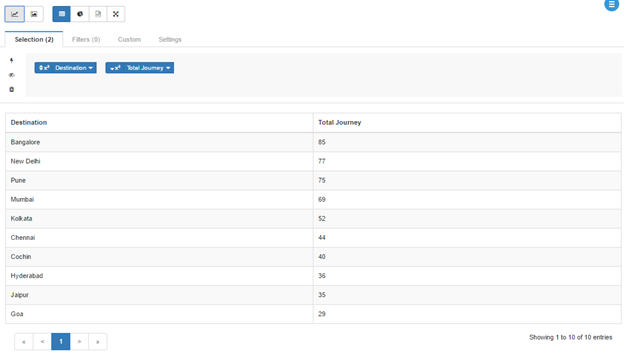

Tabular View

treemap-tabular-view

TreeMap Chart VF
treemap-chart-generated-using-helical-insight-vf

VF-Customizations:
Customizations such as font size, font type, chart colors, etc. for the chart can be added or overridden in the“Custom” -> “Styles” tab.

adhoc-custom-tab

For further assistance, kindly contact us on support@helicalinsight.com or post your queries at forum.helicalinsight.com
